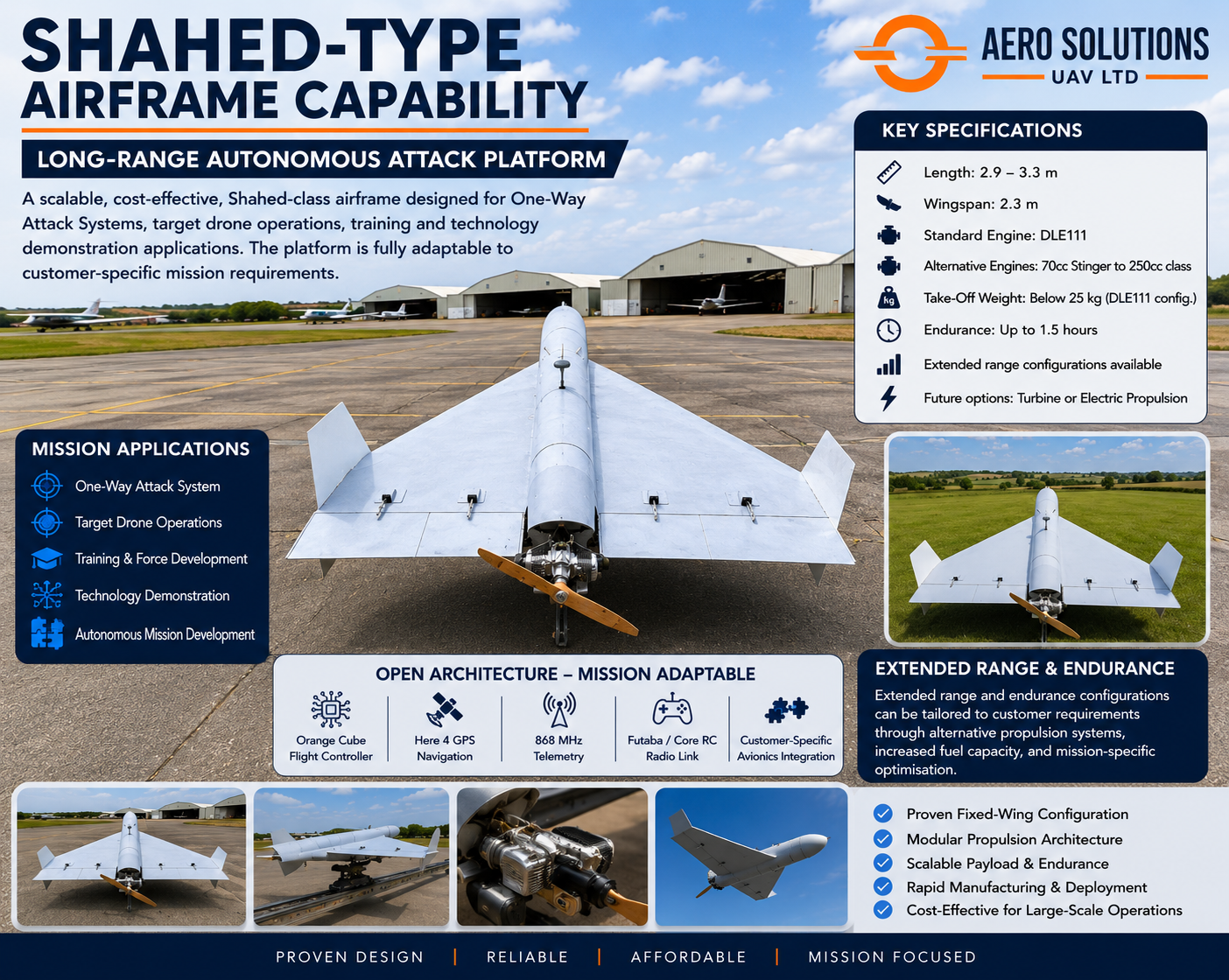

•Platform Dimensions
•Length: 2.9 – 3.3 m
•Wingspan: 2.3 m
•Comparable wing area and overall dimensions to the Shahed-136 class platform
•
•Propulsion Options
•Standard Configuration: DLE111 engine
•Alternative Lightweight Option: 70cc Stinger engine
•Heavy-Power Configuration: Up to 250cc engine
•Future Growth Path:
•Turbine propulsion
•Fully electric propulsion
•Performance
•Take-Off Weight: Below 25 kg (DLE111 configuration)
•Endurance: Up to 1.5 hours
•Larger payload and endurance configurations achievable through alternative propulsion and increased fuel capacity
•
•Avionics Architecture
•Orange Cube Flight Controller
•Here 4 GPS Navigation System
•868 MHz Telemetry Link
•Futaba or Core Radio Control Link
•Open architecture allowing customer-specific avionics integration
•Proven fixed-wing configuration
•Modular propulsion architecture
•Flexible avionics integration
•Scalable payload and endurance capability
•Suitable for One way attack , target drone, training, and technology demonstration applications
